High-Performance Serpentine Coils For Circulating Fluidized Bed Boilers

High-Performance Serpentine Coils For Circulating Fluidized Bed Boilers

Detalhes do produto:
Lugar de origem: China (continente)
Marca: HDT
Certificação: ASME, TUV, SGS, ABS, PED, ISO9001, Grade A
Número do modelo: Tubos de serpentina
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 500 toneladas
Preço: 800 - 9000 USD / ton
Detalhes da embalagem: empacotamento sedorado para exportação
Tempo de entrega: 60-75days
Termos de pagamento: L/C, T/T, Western Union
Habilidade da fonte: Cerca de 1000 toneladas / mês
Contato
Descrição de produto detalhada
Material: Aço inoxidável, aço carbono, aço de liga Certificado: ASME, TUV, GV, CE, CATEGORIA A, ISO9001
Forma: U curva, reta, bobina, tubo de cobra Aplicativo: Central elétrica industrial/
Faixa de temperatura: Até 1000°F Faixa de pressão: Até 100 bar
Espessura da parede: 0.5mm-3.0mm Cor: Personalizado

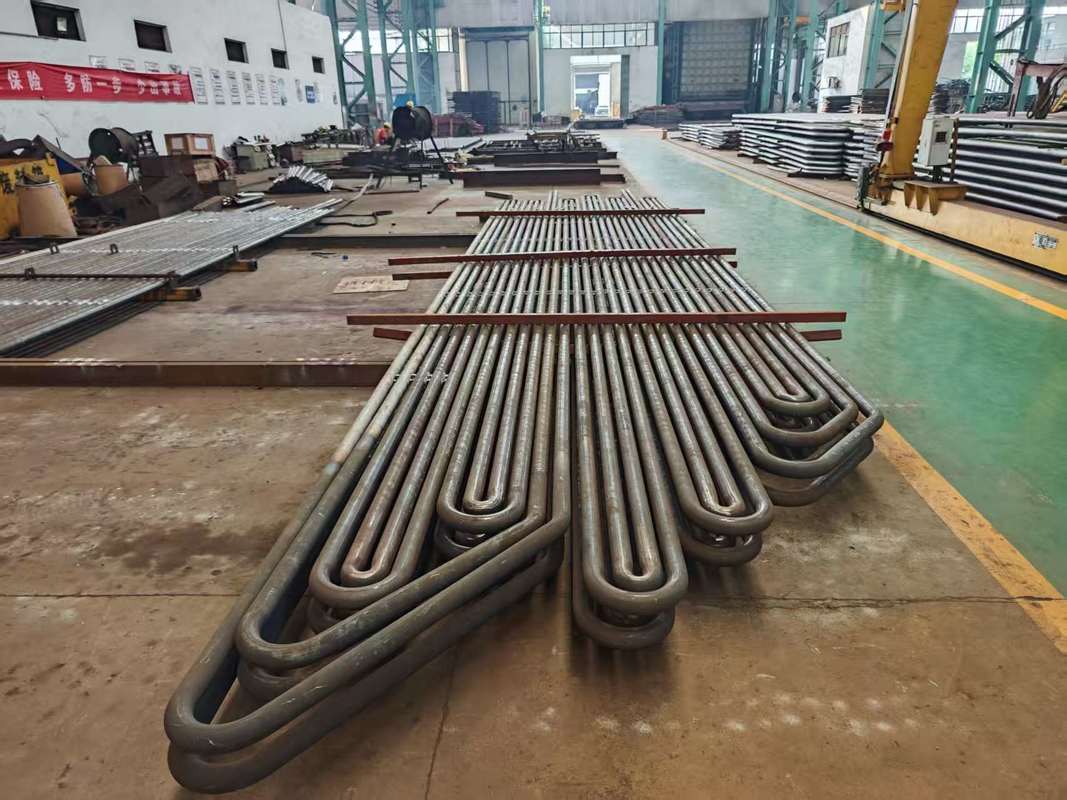

High-Performance Serpentine Coils For Circulating Fluidized Bed Boilers

Product Description



All the tubes used in serpentine coils are small-diameter ones, with sizes ranging from φ32mm to φ70mm. What’s more, the overall thickness of these tubes varies a lot. For instance, the superheater tubes have a relatively thick wall – up to 13mm – while the reheater tubes are much thinner, around 3 to 4mm.
The tube panel structure of serpentine coils is pretty complex. They have a large bending radius and big overall dimensions: the length of a tube panel can go as long as 22 meters, and the width can reach 4 meters.
When it comes to welding the butt joints of the tubes in serpentine coils, several welding methods work. You can use manual TIG welding, mechanical TIG + MIG welding, or mechanical hot-wire TIG welding – just to name a few common options.

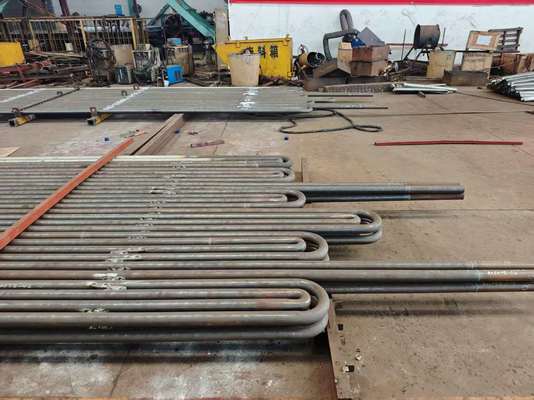

High-Performance Serpentine Coils For Circulating Fluidized Bed Boilers 0

Features

  • Product Name: Superheater And Reheater
  • Service Life: Long Service Life
  • Design: Customized
  • Maintenance: Low Maintenance
  • Pressure: High Pressure
  • Safety: High Safety
  • Key Features:
    • Designed for CFB Boiler
    • Superheater Coils for high temperature and pressure operation
    • Reheater Coils for additional heating of steam


Details

All the raw materials will be firstly made pipeline cutting.
It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.


Setting Information
processwelding
structurehorizontal or vertical
materialcarbon steel, alloy steel
tubesφ32, 38, 42, etc.
sizecustomized
brandHTEG
Warranty18 months



Differences


TypeAdvantagesDisadvantagesSupporting method
Pendant-type1.Firm structural support

1. Flow blockage by condensed steam
2. Needs slow restart to purge the water that accumulates in the bottom.

supported from above
Inverted-type1.Proper drainage of the condensed steam1. Lack the structural rigidity, especially in high speed gas flowSupported from below
Horizontal -type

1. Proper drainage
2. Good structural rigidity.

1. They do not view the flam directly so they are mainly from the convective typeUsually supported in the vertical gas ducts parallel to the main furnace.

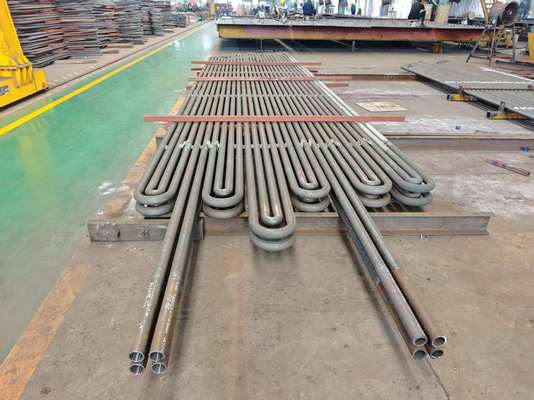

High-Performance Serpentine Coils For Circulating Fluidized Bed Boilers 1

Applications

        The Superheater and Reheater are designed for high-pressure applications and can be customized to fit specific requirements. They are used to increase the temperature of steam that is produced in boilers to improve the efficiency of heat exchange in turbines. The Superheater Coils are made from stainless steel, carbon steel, and alloy steel to ensure a long service life. These materials are also abrasion-resistant, which makes them ideal for use in harsh environments.
        The Superheater and Reheater are suitable for power plants that use coal, biomass, or gas as fuel. They also have a long service life, which reduces the need for maintenance. The Superheater and Reheater are especially useful in power plants that require a high-pressure steam system. They provide a reliable and efficient way to increase the temperature of steam, which improves the efficiency of the entire system.
        The Superheater and Reheater are used in a variety of occasions and scenarios. They are ideal for power plants that require a high-pressure steam system and are suitable for use with coal, biomass, or gas. These products are also customizable, which makes them suitable for a wide range of applications. The Superheater Coils are made from abrasion-resistant materials, which makes them ideal for use in harsh environments. They are also designed to improve the efficiency of heat exchange in turbines, which makes them an essential component in power generation systems.

Packing and Shipping

Product Packaging:
The Superheater And Reheater product will be carefully packaged to ensure safety during transportation. It will be wrapped in protective material and placed in a sturdy cardboard box with ample padding to prevent any damage during shipping.

Shipping:
The Superheater And Reheater product will be shipped via a reputable courier service to ensure timely and safe delivery. Delivery times may vary depending on the destination, but typically range from 3-7 business days. Customers will receive a tracking number once the product has been shipped so they can monitor its progress and estimated delivery date.


Company Introduction

        Hua Dong Energy Technology Started to Produce Serpentine Tube Since 1985,Up to now already supply more than 300,000 tons Steel Serpentine Tube to over 30 countries.

        Hua Dong Energy Technology deals with Austenitic Stainless Steel, Nickel Alloy Steel (Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 35 years, every year sell more than 50000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001, ISO 14001.

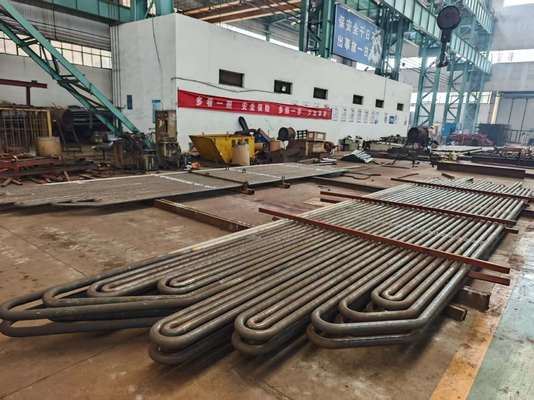

High-Performance Serpentine Coils For Circulating Fluidized Bed Boilers 2
